FIBER BLOWERS

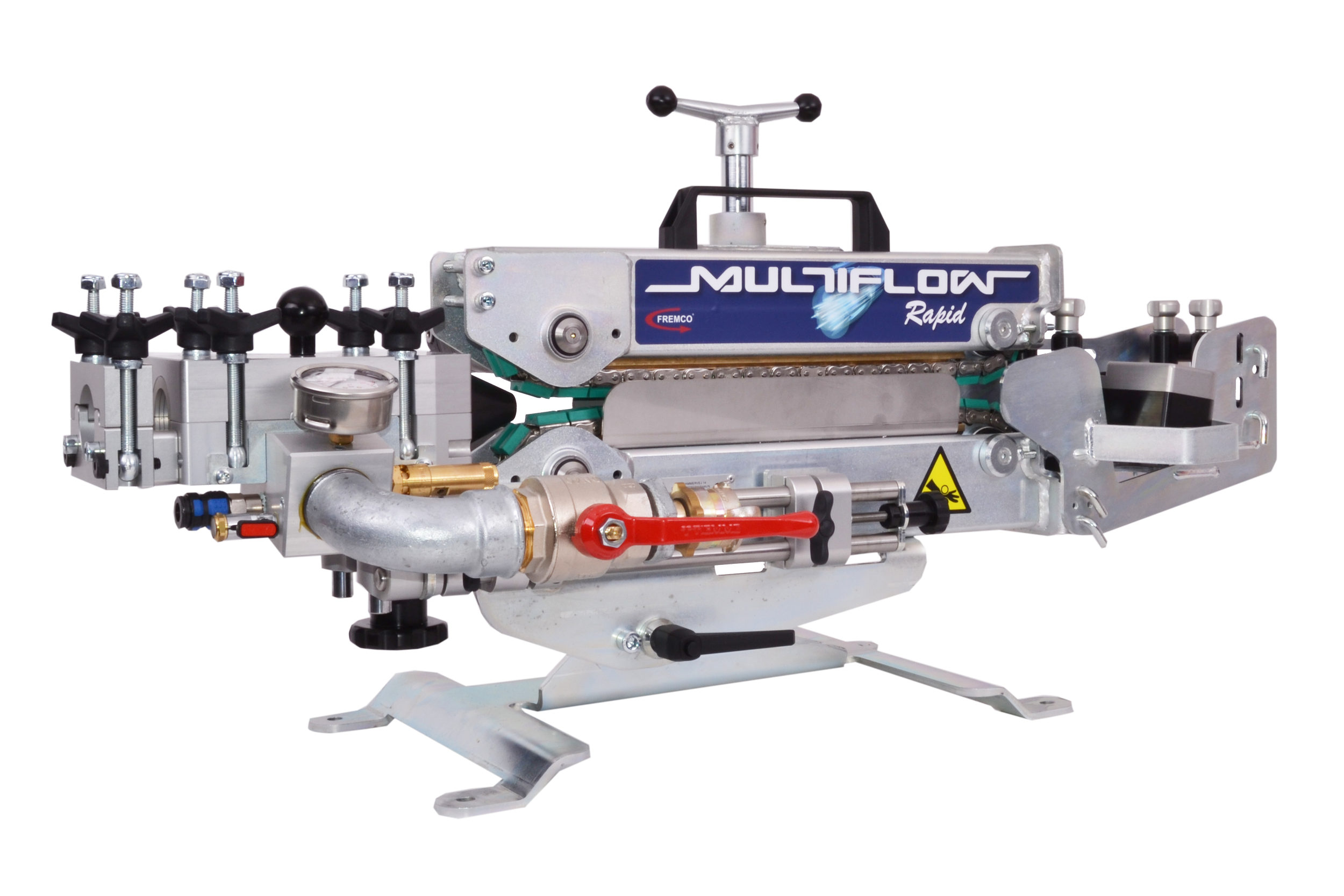

FREMCO MULTIFLOW RAPID FIBER BLOWER

Effective for both for single cable and relining
This machine is very flexible as it can both be configurated for single cable and for relining. It can blow many different combinations of ducts and microducts.

Tool free installation
The configuration and installation can be deployed without any usage of tools. This makes every fiber blowing job even more effective as the machine can quickly be adapted to blow different sizes of fiber/cable and ducts saving you a lot of time.

Cable blowing with either air or water
It is possible to install microducts and fiber optic cables using either air or water. With water assisted cable floating, you can achieve optimal results, especially when installing large cables or blowing long distances.
Fiber/Cable OD: 5.5-32 mm
Duct size OD: 10-63 mm
Preparation time: 8-10 min
Blowing distance: up to 16,404 feet
Floating distance (with water):up to 32,808 feet
SPEC SHEET
LIST PRICE - $25,070.00
RENTAL RATE:
WEEKLY - $1,500.00
4 WEEK - $4,200.00
N/A

FREMCO MINIFLOW RAPID FIBER BLOWER

Fast cable blowing
The machine is capable of installing fiber cable at a speed up to 100 m/min. and up to a distance of 3.5 km making it a compact and efficient cable blowing machine.

Robust and compact
The machine is constructed in stainless steel and anodized aluminium, which makes it suited for use under rugged conditions at cable blowing locations.

Safe installation
The MiniFlow RAPID has a unique monitoring system, which continuously monitors the pushing force applied on the fiber cable. This makes it easy to stop the process before any damage happens to the cable.
Fiber/Cable OD: 3-12 mm
Duct size OD: 7-20 mm
Preparation time: 4 min
Blowing distance: up to 11,485 feet
SPEC SHEET
LIST PRICE - $18,244.00
RENTAL RATE:
WEEKLY - $1,500.00
4 WEEK - $4,200.00
N/A

FREMCO DUCTROD RAPID W/ CONTROL VALVE

Built to push a duct rod into an underground duct. This hydraulic driven duct rodder is especially designed in close collaboration with Mills Limited to assist in rodding operations.
You have complete control of speed and pushing force. With DuctRod RAPID you can reach long distances up to 500 m. The DuctRod RAPID is equipped with an adjustable clamping unit securing the position in the manhole while preventing it from moving considerably.
Rod OD: 9-25 mm
Duct size OD: 10-40 mm
Preparation time: 2-4 min
Pushing Distance: up to 500 m
SPEC SHEET
LIST PRICE: $11,900.00
N/A

*Prices Subject to Change

please use our contact link, email, or call us for most recent price options

PLUMETT MINIJET

Discover our multi-task cable and fiber blowing machine (optical fiber, coaxial or multipair).

For cables and fibers Ø 4 to 16 mm and ducts OD 7 to 42 mm.

The MiniJet™ jetting machine is designed for blowing or floating telecommunication cables and fibers (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts.

This multipurpose jetting machine (4 in 1) is easy to use for the installation of cables, micro-cables or micro-ducts by air or water injection, and covers the most common cable diameters.

This MiniJet™ jetting machine high effectiveness significantly increases daily production. The belt drive system ensures excellent cable grip without damage and the clamping system absorbs cable diameter tolerances. In addition, its advanced design and construction improve installation performance. Its components are selected and manufactured to meet the highest requirements.
Standard version MiniJet™ with pneumatic drive
Type P02
Cable dia. [in] 0.16-0.63
Duct OD [in] 0.28-1.65
Drive unit Pneumatic
Max. air consumption of motor [ft3/min] 17.7 (at 58 psi)
Pushing force [lbf] 0-67
Max. speed [ft/min] 410
Max. air pressure [psi] 232
Max. water pressure [psi] 363
Dimension of apparatus l x w x h [in] 20.47 x 14.76 x 11.81
Dimension of apparatus with case l x w x h [in] 24.41 x 16.54 x 13.39
Dimension of tools and accessories case l x w x h [in] 24.41 x 16.54 x 12.20
Weight of machine [lbs] 44
Total shipping weight [lbs] 86
LIST PRICE - $32,990.00
RENTAL RATE:
WEEKLY - $1,500.00
4 WEEK - $3,900.00
N/A

PLUMETT SUPERJET

Discover our telecommunication cable and fiber blowing or floating machine (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts.

For cables and fibers Ø 9 to 32 mm and for ducts OD 20 to 63 mm.

The SuperJet™ jetting machine is designed for blowing or floating telecommunication cables and fibers (optical fiber, coaxial or multipair) or multiducts in preinstalled ducts.

In addition to its ability to install a wide range of cables, this jetting machine is also well suited for laying multitubes. It is very easy to use and comes with a toolbox containing all the tools needed for maintenance and services. Its clamping system ensures good cable grip without damage while absorbing tolerances of the cable diameter.
it is equipped with a distance and speed counter for a better control of the installation.
Standard version SuperJet™ with hydraulic drive
Type H01
Cable dia. [in] 0.35-1.26
Duct OD [in] 0.79-2.48
Drive unit Hydraulic
Pushing force [lbf] 0-225
Max. speed [ft/min] 279
Hydraulic power pack, type of engine Honda Gasoline GX200
Hydraulic power pack, engine, max. power [kW] 4.3
Hydraulic power pack, engine, max. speed rpm [min-1] 3600
Max. air pressure [psi] 174
Max. water pressure [psi] 363
Dimension of apparatus l x w x h [in] 36.02 x 10.83 x 16.14
Dimension of apparatus with case l x w x h [in] 38.19 x 14.96 x 17.32
Dimension of tools and accessories case l x w x h [in] 23.62 x 15.75 x 9.84
Weight of machine [lbs] 82
Total shipping weight [lbs] 337
LIST PRICE - $37,600.00
RENTAL RATE:
WEEKLY - $1,600.00
4 WEEK - $4,000.00
N/A

PLUMETT ULTIMAZ E-25 JET

Discover our electric FTTx micro-cable blowing machine inside and outside buildings.

For FTTH micro-cables Ø 0.8 to 4.0 mm and micro-ducts OD 3 to 12.0 mm.

The UltimaZ™ E jetting machine is designed for pushing and blowing FTTx micro-cables in and out buildings or premises.

This small, very light, easy to transport, to prepare and to use jetting machine requires no tools and can be operated directly from its case.

Its speed, its automatic clamping setting and its predefined pushing force facilitate its operation and increase daily meter installation. The backlight display allows easy reading of the distance, speed and pushing force as well as the battery level.

This jetting device has a built-in electric motor, powered by a long life battery, which ensures a full day autonomy.
Standard version UltimaZ™
Type E25
Cable dia. [in] 0.031-0.157
Duct OD [in] 0.118-0.472
Drive unit Built-in electric motor
Pushing force [lbf] 1-5
Max. speed [ft/min] 656
Max. air pressure [psi] 232
Dimension of apparatus l x w x h [in] 10.04 x 3.15 x 7.68
Dimension of apparatus with case l x w x h [in] 19.69 x 16.54 x 9.06
Weight of machine [lbs] 9.5
Total shipping weight [lbs] 17.6
LIST PRICE - $9,900.00
RENTAL RATE:
WEEKLY - $800.00
4 WEEK - $2,200.00
N/A

PLUMETT OPTIJET

Discover our new intelligent telecommunication micro-cable and fiber units blowing machine (optical fiber, coaxial or multipair).

For micro-cables and fiber units Ø 1.5 to 8 mm and ducts OD 3 to 16 mm.

Our latest jetting machine, the OptiJet™, takes the next step in the innovations offered for blowing telecommunication micro-cables and fiber units (optical fiber, coaxial or multipair) into pre-installed micro-ducts.

An intelligent cable jetting machine by excellence, the OptiJet™ meets the most stringent protection requirements of the new generation of cables that incorporate ever more fibers in ever smaller diameters.

A true operator's assistant, the OptiJet™ is the only cable jetting machine on the market that automatically and quickly determines the maximum force supported by the cable, regardless of its diameter and construction. This unique feature, combined with a belt drive mode and a speed control mode, rather than motor torque, ensures optimal cable protection and the success of your installation.

The compact machine is easy to use thanks to an intuitive graphic interface, and its drive and clamping motors have a servo mode specifically developed for micro-cable installation. They are powered by long-life rechargeable batteries, which are sufficient for intensive use, day after day.

Another advantage is that the air from the compressor is only used for laying the cable which allows the use of smaller compressors, making the OptiJet™ an optimised solution, combining space and energy savings.

Finally, the OptiJet™ Reporting gives you unique access to a connected world of digital services available on an IoT platform. Not only does the OptiJet™ generate a detailed report, exportable directly, via its rugged tablet, by Wi-Fi or Bluetooth, but all cable laying and machine data are available in real time and simultaneously wherever you are, in the field or in the office. A whole new and evolving range of digital services is made available and accessible directly on the OptiJet™.

The OptiJet™ is a true field cable jetting machine and a worthy successor to the Microjet™. Its superior design and manufacturing, increase the performance and reliability of cable installation. Its components are selected and tested to meet the highest requirements and allow you to benefit from the latest technology and know-how of Plumettaz, the world's leading manufacturer of cable laying equipment.

The OptiJet™ is available in 2 versions, the OptiJet™ and the OptiJet™ Reporting. Each bringing an innovative answer to the world of cable laying installation.
Standard version OptiJet™
Type Reporting
Cable dia. [in] 0.059-0.315
Duct OD [in] 0.118-0.63
Drive unit Built-in electric motor (4 batteries included)
Pushing force [lbf] 2-34
Max. speed [ft/min] 328
Max. air pressure [psi] 232
Dimension of apparatus l x w x h [in] 12.20 x 15.16 x 15.55
Dimension of apparatus with case l x w x h [in] 12.40 x 15.16 x 15.75
Dimension of tools and accessories case l x w x h [in] 24.41 x 16.54 x 16.14
Weight of machine [lbs] 42
Total shipping weight [lbs] 99
CALL FOR MOR INFO
N/A
