AIR COMPRESSORS & TRAILERS

The GMP SideWinder Trailer-Mounted Fiber Optic Puller SideWinder Fiber Optic Puller has been designed to exceed the requirements of installing underground telecommunication cables, employing a 32 in. diameter single capstan to provide a controlled force to the pulling rope or tape.
Max. Pulling Capacity 1100 lbs (500kg)
Max. Rope Speed 200 ft/min (60m/min)
Capstan Diameter 32 in. (813mm)
Dimensions:
Length:
123 in. (3124mm)
Overall Width:
69 in. (1753mm)
Height:
57 in. (1450mm)
Weight:
1400 lbs. (635kg)
Track:
60 in. (1676mm)
Tire Size: F78-14 205/75D14
Hitch Coupling: Lunette Ring (Pintle Eye) (P/N 32672) (See optional configuration below)
Lighting Adapter: 7-Pole RV Blade Type (P/N 29399) Supplied as standard (See optional configurations below)
Power Supply: Honda GX390 13 HP, Recoil Start, Overhead Valve, Cast Iron Cylinder Sleeve, 1.5 Gallon tank
Load indication: Calibrated gauge bezel
Main Drive: Fixed displacement tandem pumps to fixed displacement high torque motors.
Gear Box: In-line planetary gearbox (capstan drive)
RENTAL RATE:
WEEKLY - $1,300.00
FOUR WEEK - $3,800.00
LIST PRICE - $44,000.00
OWNERS MANUAL

The Mobilair M125 offers an array of features that make it very user-friendly. Units come standard with an easy to read control panel that is well protected. The fuel tank has a large filler neck with overflow protection for safe, easy filling. The hitch with rigid tow bar also make transporting the M125 easy around the jobsite. The enclosure is super-soundproofed and provides extremely low decibel levels. The chassis is heavy duty steel and enclosure is fully galvanized to ensure long life even when subjected to the harshest conditions. The M125 is pressure variable and allows for up to 205 PSI at 342 CFM. On the flip side the M125 will produce 405 CFM at 145 PSI. The addition of the internal after Air Cooler with centrifugal water separator, will allow for cool/dry air flow for increased production. Unit is equipment with both a 1" and 2" air supply outlets.
LIST PRICE - $88,900.00
N/A

The Mobilair M17 is a rugged and dependable unit that is perfect for a variety of applications. With a folding handle, oversized tires, and compact design it makes it easy to move around the jobsite. The M17 allows for up to 217 PSI at 35CFM. This makes it perfect for placing micro cables into 16mm OD micro ducts and smaller. The addition of the external after cooler with centrifugal separator, will allow for cool/dry air flow at a minimum extra charge. Unit is equipment with both a 1" and 1/2" air outlet and electric starter with key start.
COMING SOON
LIST PRICE - $13,900.00
N/A

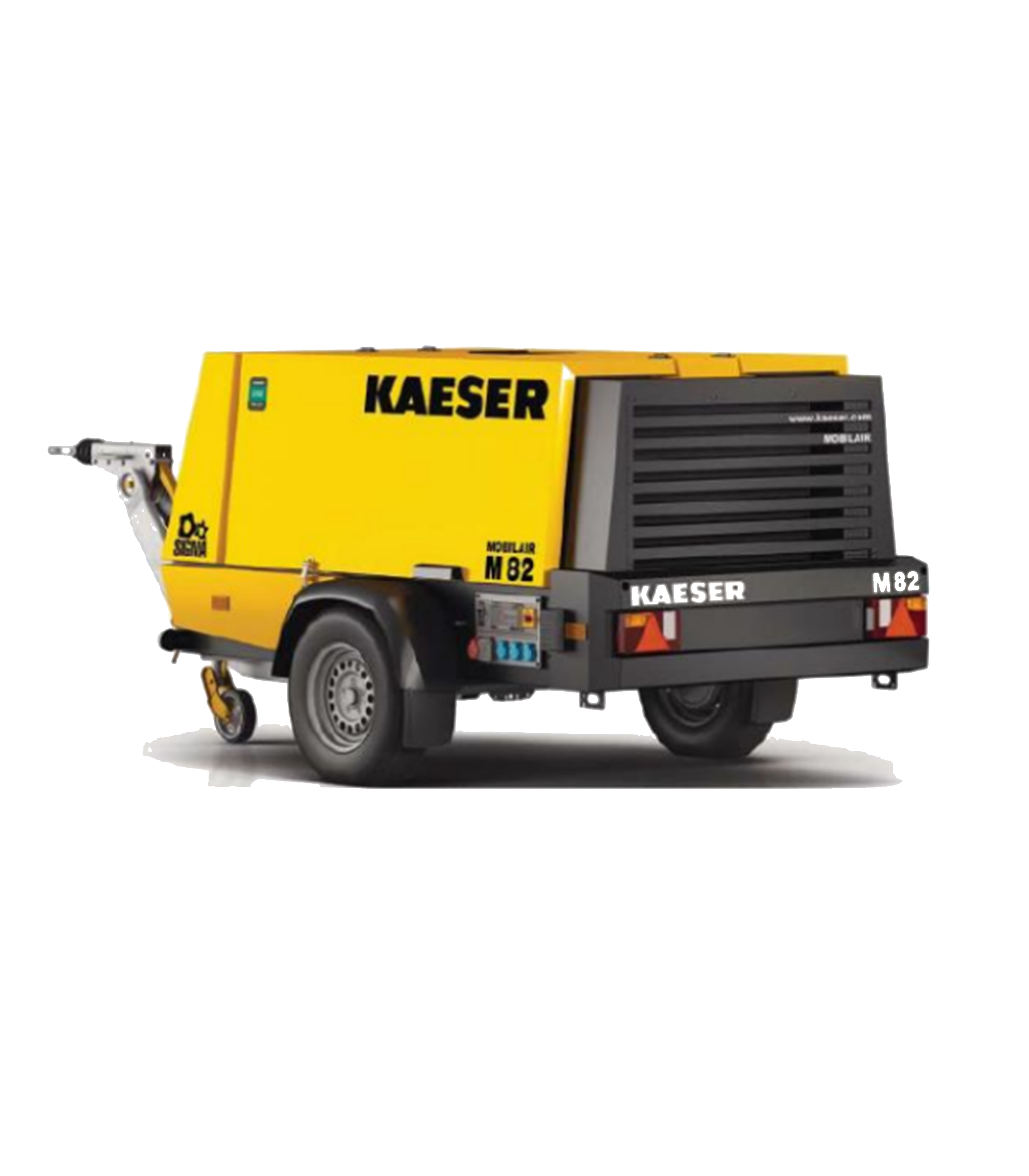

The Mobilair M82 is a rugged and dependable unit that is perfect for a variety of applications. Unit comes standard with a Sigma Control Start electronic controller with protective cover. The lifting eye and height adjustable hitch with rigid tow bar also make transporting the M82 easy around the jobsite. The enclosure is super-soundproofed and provides extremely low decibel levels. It has a large fuel tank for up to 10 hours of continuous operation. The M82 allows for up to 205 PSI at 195 CFM. The addition of the internal after Air Cooler with centrifugal water separator, will allow for cool/dry air flow for increased production. Unit is equipment with both a 1" and 2" air supply outlets.
COMING SOON
LIST PRICE - $49,900.00
N/A
